is an ethernet cable connector that functions as a connector on a LAN(Local Area ) and other topologies.

RJ stands for Registered Jack which is standard equipment on a network that regulates the installation of connector heads and the order of wires to connect equipment in the network.

This connector can be found on UTP or Unshielded Twisted Pair cables as well as STP cables or Shield Twisted Pair.

Each connector on the has eight pins with eight separate cables. Each cable has a different color and the order in which it is installed has its own rules. There is an international standard of color order in sorting such cables.

TOP TUTORIALS:  How to Mount and Unmount a Disk Drive Volume as a Folder in Windows 11

T-568A RJ45 Pinout

RJ45 Pinout T568A

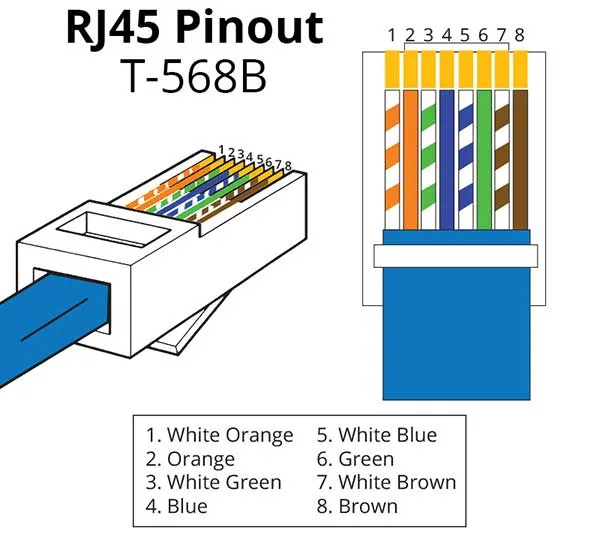

T-568B RJ45 Pinout

T568B pinout

The TIA/EIA 568-A standard was ratified in 1995 and replaced by TIA/EIA 568-B standard in 2002 and has been updated ever since. Both standards specify the T-568A and T-568B pinouts on unshielded twisted pair cables and RJ-45 connectors for Ethernet connections.

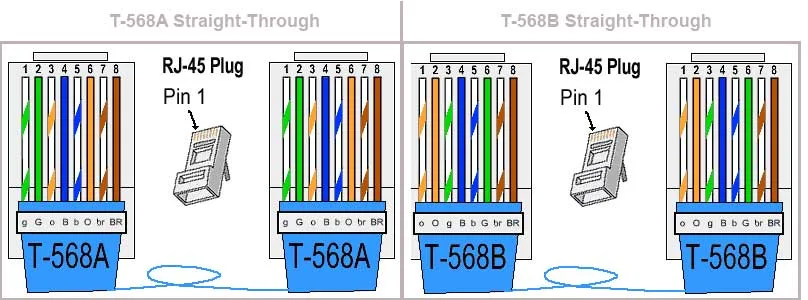

Cable straight through

A straight-through ethernet cable is a type of cable on a LAN to connect a computer to a network hub/switch such as a . This type of cable has another name“patch cable”. In this straight-through cable using one standard cable, can both ends use the standard T-568A cable or both ends use the standard T-568B cable.

TOP TUTORIALS:  How to merge multiple Excel files into one file
rj45 straight

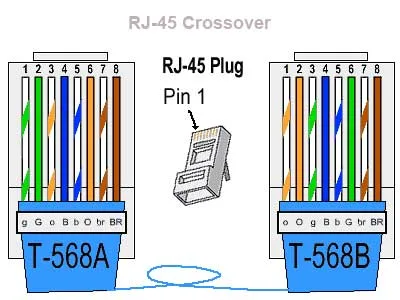

Crossover Cable

A type of ethernet is a type for connecting computer devices directly. Unlike straight-through cables, the uses two different cable standards: one end uses the T568A cable standard, and the other end uses the T568B cable standard.

rj45 crossover

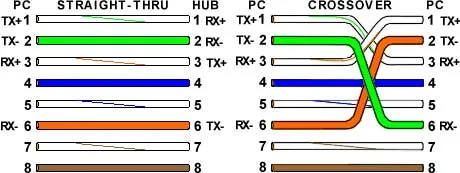

RJ45 cable system diagram

rj45 theory

By looking at the T-568A straight-thru cable and with the end of the T-568B, we see that the TX (transmitter) is connected to the corresponding RX (receiver) , plus to plus and minus to minus.

TOP TUTORIALS:  Promotion of Windows Server 2019 as Domain Controller

You can also see that the blue and brown cable pairs on pins 4, 5, 7, and 8 are not used in either standard. So why bother using this cable ??? The answer is to wait for the next article…
